| CL65 AMG | ||
| Vehicle type | Two-door, four-passenger coupe | |
| Chassis | Steel unit body; aluminum front fenders, doors and hood; composite trunk lid. | |
| Engine | 60-degree V12 | |
| Valve arrangement | 3 valves per cylinder | |
| Valvetrain | Single overhead camshaft per cylinder bank | |
| Displacement (cc) | 5,980 | |
| Bore (in./mm) | 3.25 | |
| Stroke (in./mm) | 3.66 | |
| Compression ratio | 9.0 : 1 | |
| Horsepower @ rpm | 621 @ 4,800 | |
| Torque (lb-ft.) @ rpm | 738 @ 2,300 – 4,300 | |
| Intake system | Twin turbochargers, twin intercoolers | |
| Max. engine speed (rpm) | 6,100 | |
| Transmission | AMG SPEEDSHIFT Five-speed automatic | |
| Shift controls | Direct Select | |
| Gear ratios | Automatic | |
| 1 | 3.60:1 | |
| 2 | 2.19:1 | |
| 3 | 1.41:1 | |
| 4 | 1.00:1 | |
| 5 | 0.83:1 | |
| 6 | — | |
| 7 | — | |
| R | – 3.16:1 | |
| R2 "comfort mode" | – 1.93:1 | |
| Final drive | 2.65:1 | |
| Stability control | ESP stability control | |
| Suspension | Four-wheel independent with ABC active suspension; Automatic four-wheel level control, adjustable ride height, automatic lowering, crosswind stabilization | |
| front | Four-link suspension, Active Body Control | |
| rear | Multi-link independent suspension, Active Body Control | |
| Steering | Speed-sensitive power-assisted rack-and-pinion | |
| Turning radius (ft.) | 38.1 | |
|
Wheels (in.) |
front | 8.5 x 20 |
| rear | 9.5 x 20 | |
| Tires | front | 255/35 ZR20 |
| rear | 275/35 ZR20 | |
| Brakes | Hydraulic power assisted 4-wheel discs with 4-channel ABS anti-lock; Brake Assist | |
| Disc diameter (in./mm) | front | 15.4; perforated, ventilated |
| rear | 14.4; perforated, ventilated | |
| Disc thickness (in./mm) | front | |
| rear | ||
| Exterior dimensions (in. / mm) | ||
| Wheelbase | 116.3 | |
| Length | 201.02 | |
| Width | 73.7 | |
| Height | 56.2 | |
| Ground clearance (in.) | TBD | |
| Track | front | 63.0 |
| rear | 63.3 | |
| Interior dimensions (in.) | ||
| Head room | front | 36.9 |
| 2nd / 3rd row | 36.4 | |
| Leg room | front | 42.2 |
| 2nd / 3rd row | 32.2 | |
| Shoulder room | front | 59.2 |
| 2nd / 3rd row | 55.2 | |
| Cargo Length | Back row up | — |
| Back / 2nd row down | — | |
| Capacities | ||
| Cabin volume (cu. ft.) | 104.2 | |
| Cargo volume | seats up | 13.5 |
| Back row down | — | |
| Curb weight (lbs.) | 5,027 | |
| Towing (lbs.) | — | |
| Max. total payload | ||
| Fuel tank/reserve (gallons) | 23.8 / 3.7 | |
| AdBlue tank (gallons) | ||
| Performance | ||
| 0-60 (seconds) | 4.3 | |
| Top speed (mph) | 186 | |
| Fuel mileage, city/hwy | 12 / 18 / 14 | |

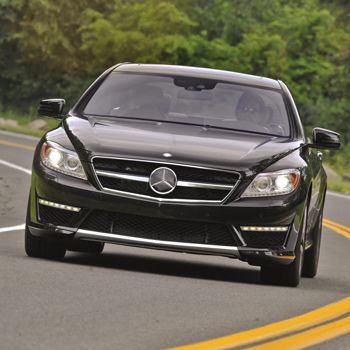

2012 Mercedes-Benz CL65 AMG
